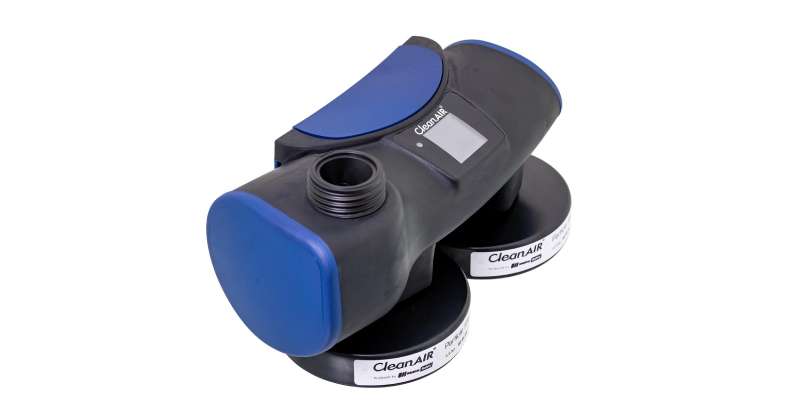

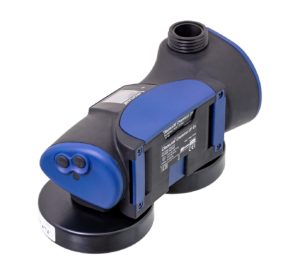

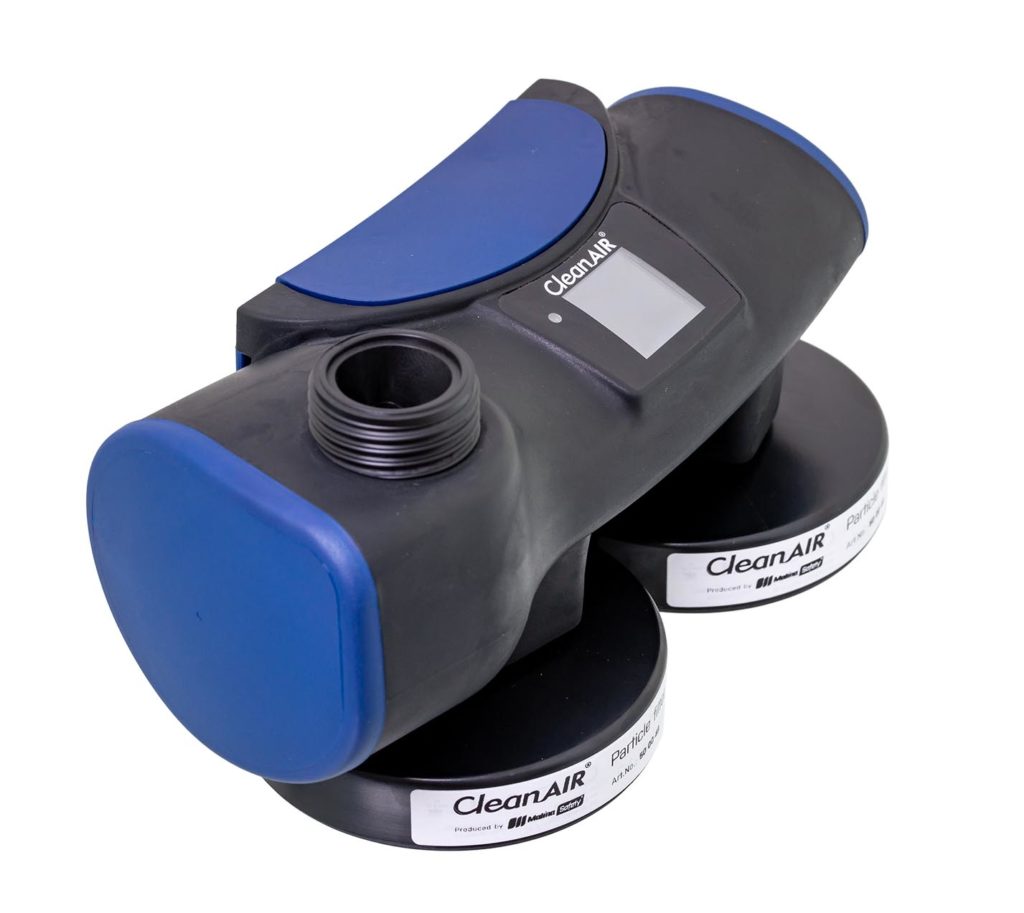

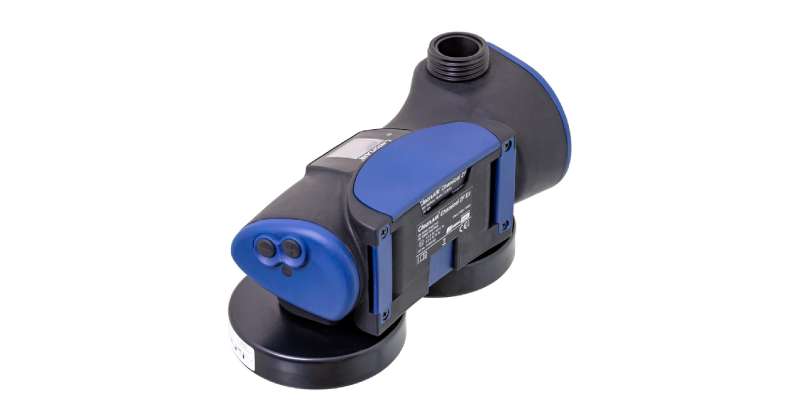

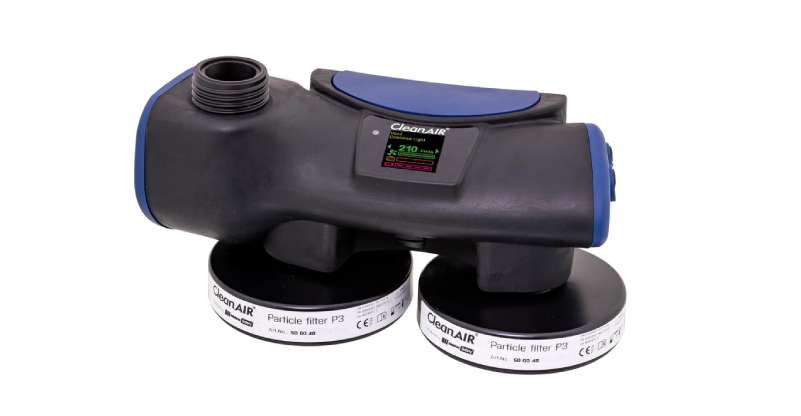

CleanAIR® Chemical 2F EX

The most versatile and durable respirator is newly available in ATEX version which can be used in potentiallly explosive atmospheres.

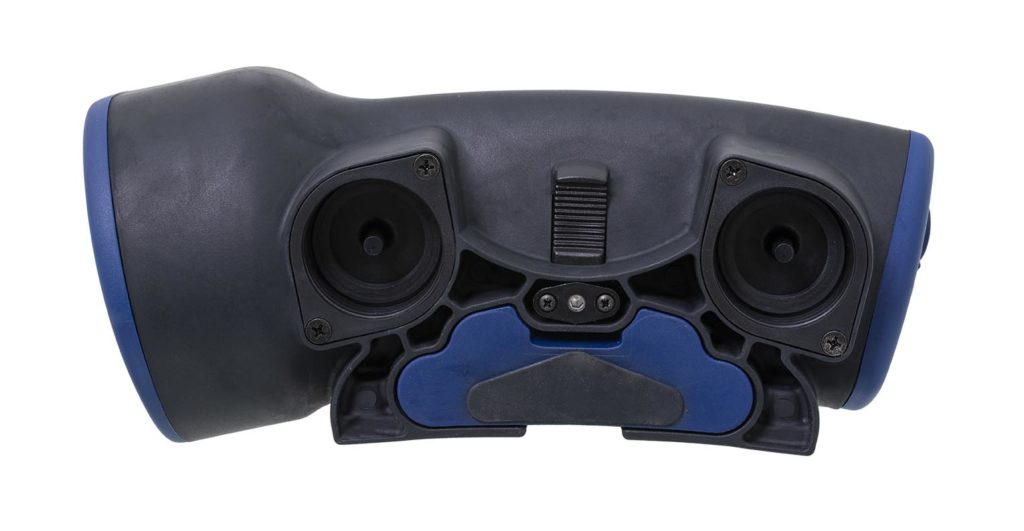

Despite its compact design and low weight, Chemical 2F is characterized by outstanding durability, chemical resistance and increased ingress protection. The thought-out design with smooth surface allows easy decontamination by shower or even full immersion. The unique aotomatic closing system prevents unwanted contamination while the filters are being changed. The smart Flow Control system maintains the airflow constant regardless filter clogging or low battery charge. Audiovisual alarm indicate when the battery charge and/or filter replacement is required. Airflow is individualy adjustable from 120 lpm up to 235 lpm.

Details

Areas of application

  • Potentially explosive atmospheres – approved to Zone 2
  • Heavy industrial environments including chemical and pharmaceutical industry
  • Remediation operations, laboratories
  • First responders and emergency teams
  • Biological protection

Features & Benefits

  • Compact design and low weight
  • Specially adapted for use in potentially explosive atmospheres – approved to Zone 2
  • Compatible with a hood, mask or ventilated protective suit
  • High mechanical and chemical resistance
  • Increased ingress protection allows decontamination by shower or even full immersion (IP64/IP65/IP68)
  • Full colour display clearly shows all the relevant information – filter clogging, battery charge, airflow
  • Flow Control system maintains constant airflow regardless of the level of filter clogging or battery charge
  • Short battery recharging time < 3 hours
  • Audiovisual alarm
  • Multilingual user interface
Complete sets

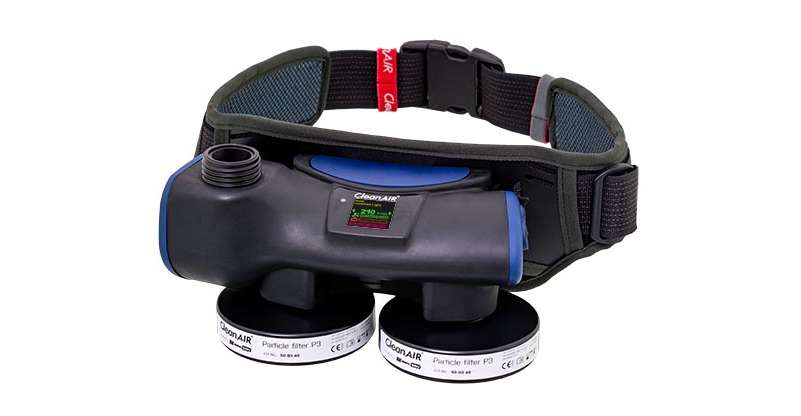

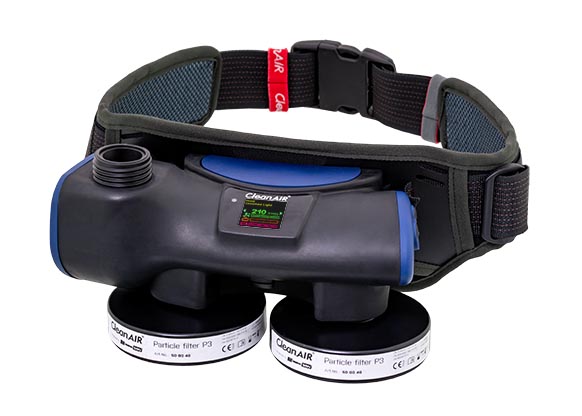

CleanAIR® Chemical 2F Ex – incl. comfort belt Ex, Li-Ion battery, charger, light flexi hose QuickLOCK™, flow indicator 51 E0 00FC
Spare parts, accessories
Short hood CA-1, orange, uni size 72 01 02
Short hood CA-1, blue, uni size 72 01 02B
Long hood CA-2, orange, uni size 72 02 02
Long hood CA-2, blue, uni size 72 02 02B
Long protective hood CA-10, chemically resistant 72 10 02
Protective face shield UniMask, grey 72 03 00.01
Filters

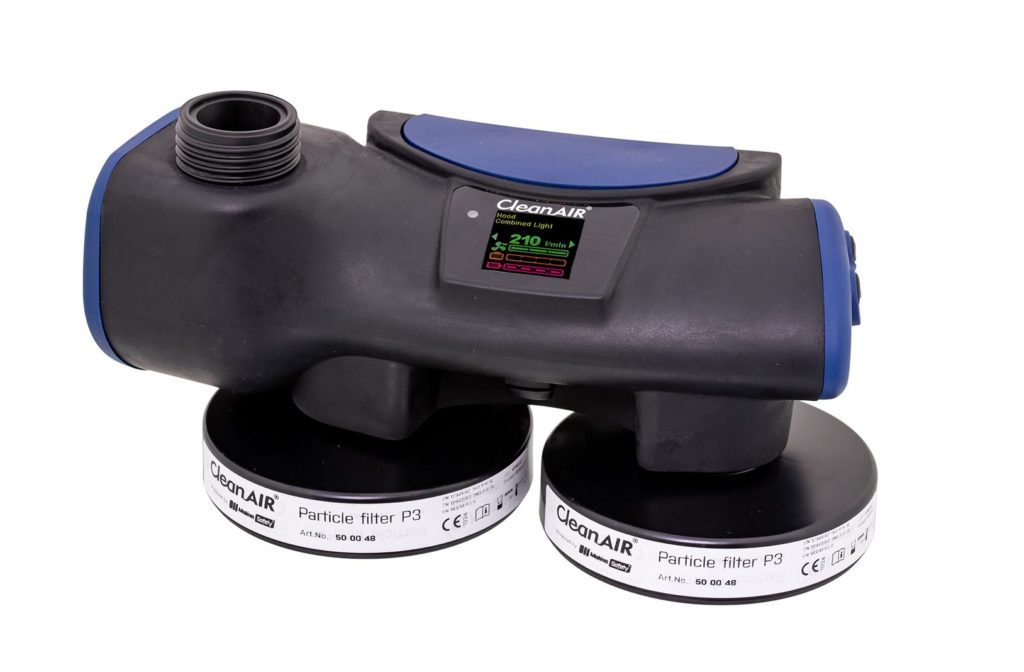

Particle filter P3 50 00 48
Combined filter A1P3 50 03 57
Combined filter A1B1E1P3 50 03 64
Weight 960 g (including battery)
Dimension 240 mm / 110 mm / 120 mm
Airflow adjustable 120 -235 lpm
Alarm audio, visual
Operation* / charging time < 10 / < 3 h

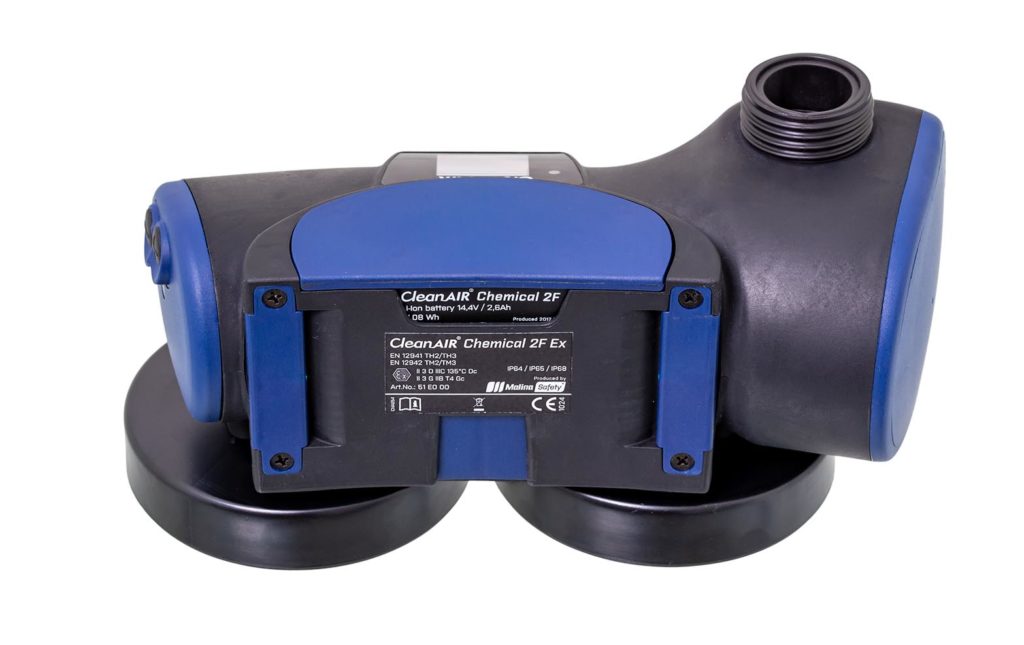

Battery Li-Ion 14,4 V / 2,6 Ah (standard)
Hose connection CA40x1/7“
Certification EN 12941 TH3
EN 12942 TM3
ATEX classification Ingress protection IP64/IP65/IP68
II 3 G IIB T4 Gc
II 3 D IIIC 135°C Dc
* at 160 lpm with brand new P R SL filters and fully charged battery
