CA-40 Safety helmet with welding shield

Easy to wear, easy to use helmet

A conceptual solution for the most challenging industries available in three individual product modifications. You can choose from the combination of the safety helmet with the welding shield or the grinding visor or even benefit from both solutions integrated into one protective device.

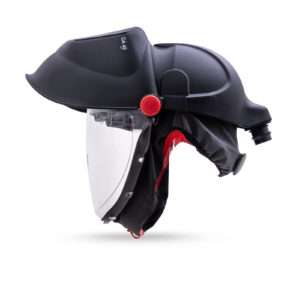

CA-40GW

Multi-purpose safety helmet with a welding and grinding shield provides 5 levels of protection at once: eye, face, head, respiratory and optional hearing protection. Stable flip-up is compatible with auto-darkening filters or passive filters in dimension of 110×90 mm. Superb quality visor with anti-fog / anti-scratch coating guarantees excelent field of vision and increased durability. The easy to change DIN4 or DIN5 visor expand the system to the perfect protector for efficient Plasma or Oxy cutting.
The product is suitable for the most challenging welding tasks including welding preparations (positioning, clamping) and further surface operations (grinding, cleaning, polishing).

Safety helmet CA-40GW with welding shield and grinding visor, w/o ADF 70 42 00
Safety helmet CA-40GW with welding shield and grinding visor, including ADF Balder V9-13 70 42 01

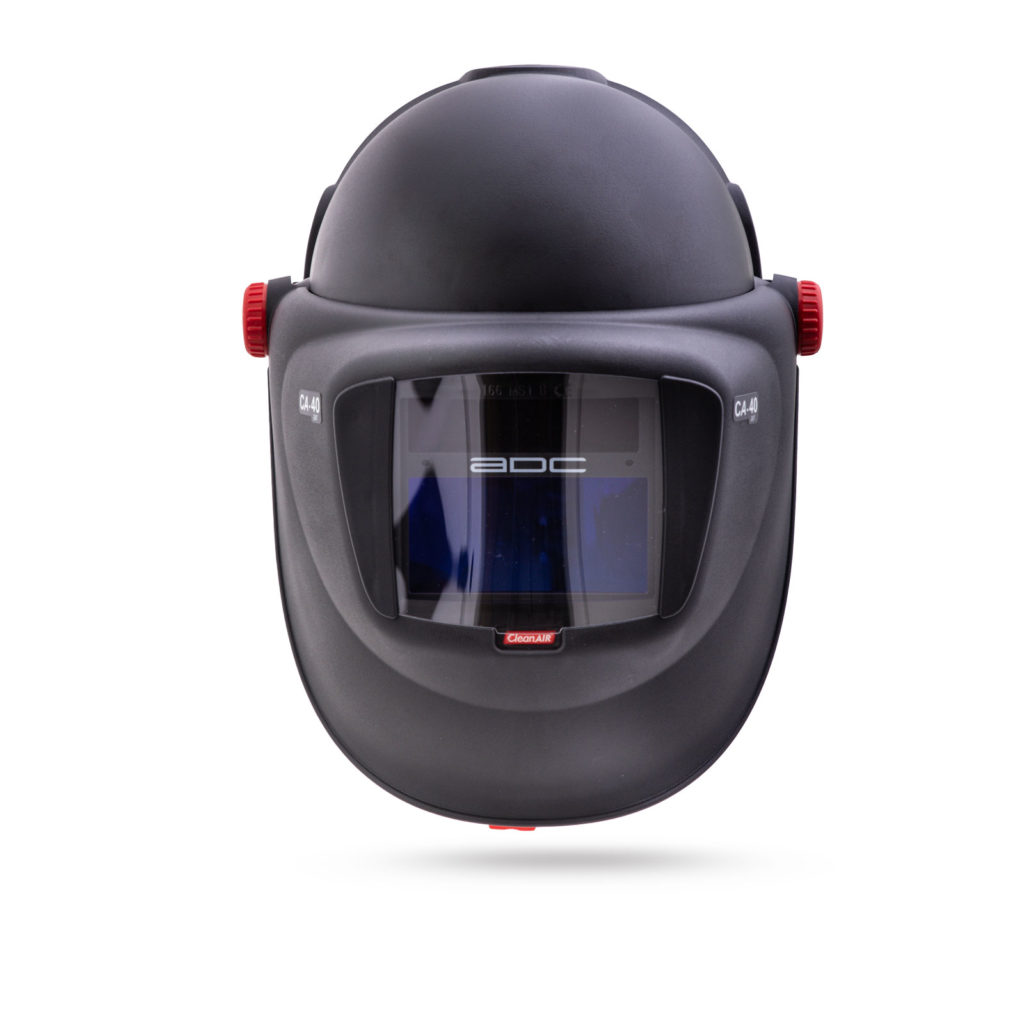

Welding helmet Clean-AIR CA-40 earmuffs

CA-40GW

Combination of a welding shield and a safety helmet with integrated air distribution. Ensures protection of the head, eyes, face, respiratory and hearing. Compatible with auto-darkening filters or passive filters in dimension of 110×90 mm.

Safety helmet CA-40 with welding shield, w/o ADF 70 40 00
Safety helmet CA-40 with welding shield, with ADF Balder V9-13 70 40 01

CA-40GW

Combination of a grinding visor and a safety helmet with integrated air distribution. Ensures protection of the head, eyes, face, respiratory and hearing. Superb quality toric visor with anti-fog / anti-scratch coating guarantees an excelent field of vision and increased durability. The easy to change DIN4 or DIN5 visor expands the system to the perfect protector for efficient Plasma or Oxy cutting.

Safety helmet CA-40G with grinding visor 70 41 00

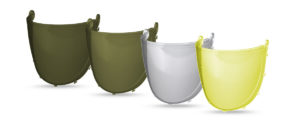

New grinding visors available

You can choose from two different shade levels 4 and 5 or a bright yellow visor. The brand new toric visors offer excelent optical quality (EN 166 class 1) and enhanced robustness – protection against high-speed particles with HIGH energy guaranteed. The product is suitable for the most challenging welding tasks including welding preparations (positioning, clamping) and further surface operations (grinding, cleaning, polishing).

Spare grinding visor for CA-40, class 1, clear 70 41 03
Spare grinding visor for CA-40, class 1, yellow 70 41 04
Spare grinding visor for CA-40, class 1, shade 4 70 41 05
Spare grinding visor for CA-40, class 1, shade 5 70 41 06

ADF options

New AerTEC™ auto-darkening welding filters offer a great price-performance ratio. Advanced control options including shade, sensitivity and delay adjustment and grind/weld function are available. Wide field of vision thanks to the enlarged lens with True Colour feature (AerTEC™ X110) alowing realiastic colour perception.

Auto-darkening welding filter AerTEC™ X100, 9-13 40 51 00
Auto-darkening welding filter AerTEC™ X110 true colour, 9-13 40 51 10

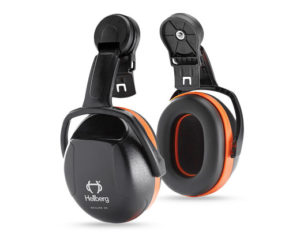

Optional hearing protection

Combination of a grinding visor and a safety helmet with integrated air distribution. Ensures protection of the head, eyes, face, respiratory and hearing. Superb quality toric visor with anti-fog / anti-scratch coating guarantees an excelent field of vision and increased durability. The easy to change DIN4 or DIN5 visor expands the system to the perfect protector for efficient Plasma or Oxy cutting.

Earmuffs Secure 1C – For long term use in low noise level or shorter periods in medium noise level environments. 71 40 40
Earmuffs Secure 2C – For long term use in medium noise level or shorter periods in high noise level environments. Best choice in high frequency dominated noise. 71 40 41
Earmuffs Secure 3C – For use in high noise level environments.
Best choice in low frequency dominated noise.
71 40 42

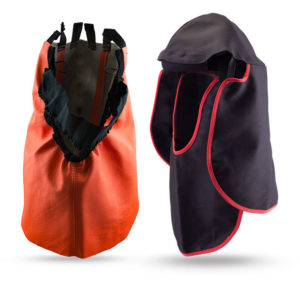

Extend your protection

You can choose from two different neck and throat protectors.

Neck and throat protection made from flame retardant fabric 70 40 65
eck and throat protection made from high durable leather 70 40 65L

Details

Areas of application

Automotive industry, construction, shipbuilding, heavy duty maintenance.

Features & Benefits

  • Multiple protection – 5 levels of protection at once: eye, face, head, respiratory and optional hearing protection
  • Easy to wear, easy to use and easy to maintain system
  • Comtaptible with ADFs or passive filters 110×90 mm
  • Superb quality spherical visor guarantees an excelent field of vision
  • Anti-fog coating prevents the visor from fogging
  • Anti-scratch coating increases the mechanical durability of the visor
  • Shade 4, shade 5 and yellow visors available
  • Enhanced robustness – protection against high-speed particles with HIGH energy
  • In-built air distribution system
  • The highest standard in respiratory protection – TH3
Complete hoods
Safety helmet CA-40GW with welding shield and grinding visor, w/o ADF 70 42 00
Safety helmet CA-40GW with welding shield and grinding visor, including ADF Balder V9-13 70 42 01
Safety helmet CA-40G with grinding visor 70 41 00
Safety helmet CA-40 with welding shield, w/o ADF 70 40 00
Safety helmet CA-40 with welding shield, including ADF Balder V9-13 70 40 01
Spare parts, accessories
Safety helmet CA40 with welding shield 70 40 00
Safety helmet CA40 with welding shield (including ADF Balder V913 ADC) 70 40 01
Safety helmet CA40G with grinding shield 70 41 00
Safety helmet CA40GW with grinding and welding shield 70 42 00
Safety helmet CA40GW with grinding and welding shield (including ADF Balder V913 ADC) 70 42 01
Autodarkening filter V913 DS ADC 40 50 40
Autodarkening welding filter AerTEC™ X100 4/9–13 40 51 00
Autodarkening welding filter AerTEC™ X110 true colour 40 51 10
Inner cover plate, 107×51 polycarb. (10 pcs) for CA40, CA40GW 70 24 81
CA40 spare welding shield 70 40 02
Fixing screws 2 pcs 70 40 43
Sweatband CA40 70 40 44
Outer cover plate polycarb. (10 pcs) for CA40, CA40GW 70 40 80
Headband for CA40 70 40 41x
CA40 face seal 70 40 60
Spare grinding visor for CA40, class 1, clear 70 41 03
Spare grinding visor for CA40, class 1, yellow 70 41 04
Spare grinding visor for CA40, class 1, shade 4 71 40 42
Passive welding filter, (Put 09 – 13 instead of ** welding filter darkness) 70 41 05
Spare grinding visor for CA40, class 1, shade 5 70 41 06
Welding shield (for version CA40GW) 70 42 02
Earmuffs Secure 1C, No. 8 71 40 40
Earmuffs Secure 2C, No. 10 71 40 41
Earmuffs Secure 3C, No. 12 71 40 42
Passive welding filter, (Put 09 13 instead of ** welding filter darkness) 110/90**
Weight (GW/G/W) 1255 / 1100 / 1100 g
ADF dimensions 110×90 mm
Viewing area 95×46,5 mm – Balder V9-13
100×53 mm – AerTEC™ X100/X110
Hose connection QuickLOCK™
Certification EN 166 1, A, K, N
EN 379 1/1/1/2, EN 175 S, B, EN 397
EN 12941 TH3, EN 14594 3B
Protection factor (NPF) 500
