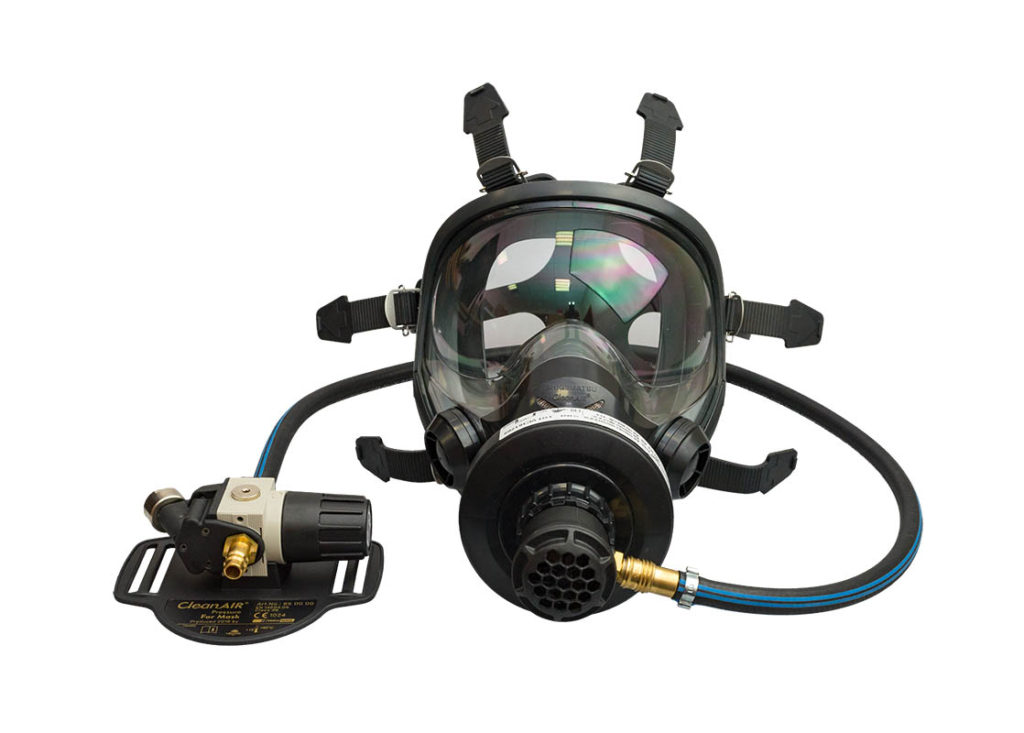

CleanAIR® Pressure For Mask

The CleanAIR® Pressure for Mask is comfortable and versatile, highly effective constant flow airline system for use with the Shigematsu GX02 mask. The unique filter back up feature allows the user to keep breathing normally through the passive particle or combined filter in case of a sudden failure of air supply.

The system allows the user to adjust the airflow from 170 lpm up to 250 lpm and keeps it at constant level regardless to changes of inlet pressure. In addition to the air flow regulation the system is equipped with a warning whistle. It warns the user if the inlet pressure drops below the bottom limit of operating pressure (350 kPa).
CleanAIR® Pressure for Mask has especially been designed for long wearing periods or for workplaces where the contaminants are particularly toxic and have poor warning properties. It provides the maximum nominal protection factor of 2000 in accordance with EN 14594:05 (CLASS 4B).

Details

Areas of application

  • Environments with particularly toxic contaminants
  • Operations demanding a long wearing period
  • Dusty industrial environments
  • Constructions and food procesing industry
  • Closed tanks, tunnels

Features & Benefits

  • Low weight
  • Economical operation
  • High levels of airflow
  • Warning low pressure system
Complete sets
Pressure for Mask incl. P3 filter and comfort belt 65 00 00PC
Pressure for Mask incl. P3 filter and decont. belt 65 00 00PD
Spare parts, accessories
Pressure for Mask – mask reduction including P3 filter 65 00 10
Pressure for Mask – spare hose including coupling 65 00 30
Comfort padded belt Standard 71 00 93
Decontaminable rubber belt 70 00 97
Pressure hose standard 10 m 61 00 30
Pressure hose antistatic 10 m 61 00 31
Pressure hose spiral 61 00 46
Filter P3 with two threads RD40×1/7“ 50 02 48
Filter A2B2E2K2P3 with two threads RD40×1/7“ 50 02 68
Air flow – adjustable 170–250 lpm
Inlet pressure 400–1 000 kPa
Weight 280 g (without air hose and filter)
Inlet connection compatible with RECTUS 25,26 and CEJN 320
Outlet connection MINI DIN 5 – compatible with RECTUS 21 serie
Certification EN 14594, class 4B
