CleanAIR® Pressure Flow Master

Ideal solution for workplaces with the possibility of connection to a central compressed air distribution system or a compressor.

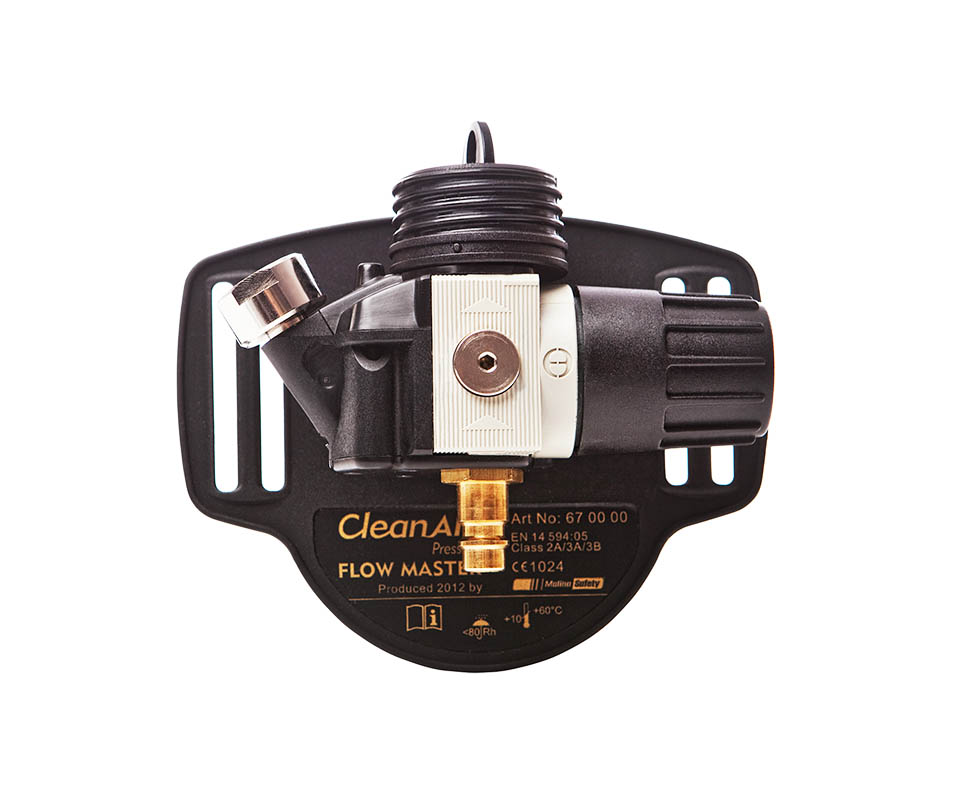

System CleanAIR® Pressure Flow Master can regulate the amount of air coming from a central compressed air distribution system or a compressor and keeps it at a constant level regardless to the changes of inlet pressure. Apart from the airflow regulation, the system has a warning whistle which can warn the user in case of the decrease of inlet pressure below the bottom limit of operation pressure (cca 350 kPa).

Details

Areas of application

  • Automotive industry – welding, grinding, surface finishing operations
  • Heavy industrial environments
  • Chemical industry
  • Laboratories

Features & Benefits

  • Low weight
  • Cost – effective operation
  • High levels of airflow
  • Low pressure warning system
Complete sets
CleanAIR® Flow Master including accessories (comfort belt and flow indicator) 67 00 00
CleanAIR® Pressure Conditioner with stand 61 00 50
Spare parts, accessories
Light flexi hose QuickLOCK™ – CA40x1/7“ 71 00 60
Rubber hose QuickLOCK™ – CA40×1/7“ 71 00 86
Belt for CA Pressure 70 00 95
Comfort padded belt 71 00 93
Leather comfort belt 72 00 93
Noise silencer 63 00 10
Pressure hose standard 10 m 61 00 30
Pressure hose antistatic 10 m 61 00 31
Pressure hose spiral 6,5×10 mm, length 10 m 61 00 46
Air flow 160–250 lpm
Inlet pressure 400–1 000 kPa
Weight 280 g
Noisiness max. 61 dB
Dimensions 235 mm / 126 mm / 65 mm
Inlet connection compatible with RECTUS 25, 26 and CEJN 320
Outlet connection CA40×1/7“
Certification EN 14594, class 3B
