ONE SOLUTION
FOR MANY NEEDS

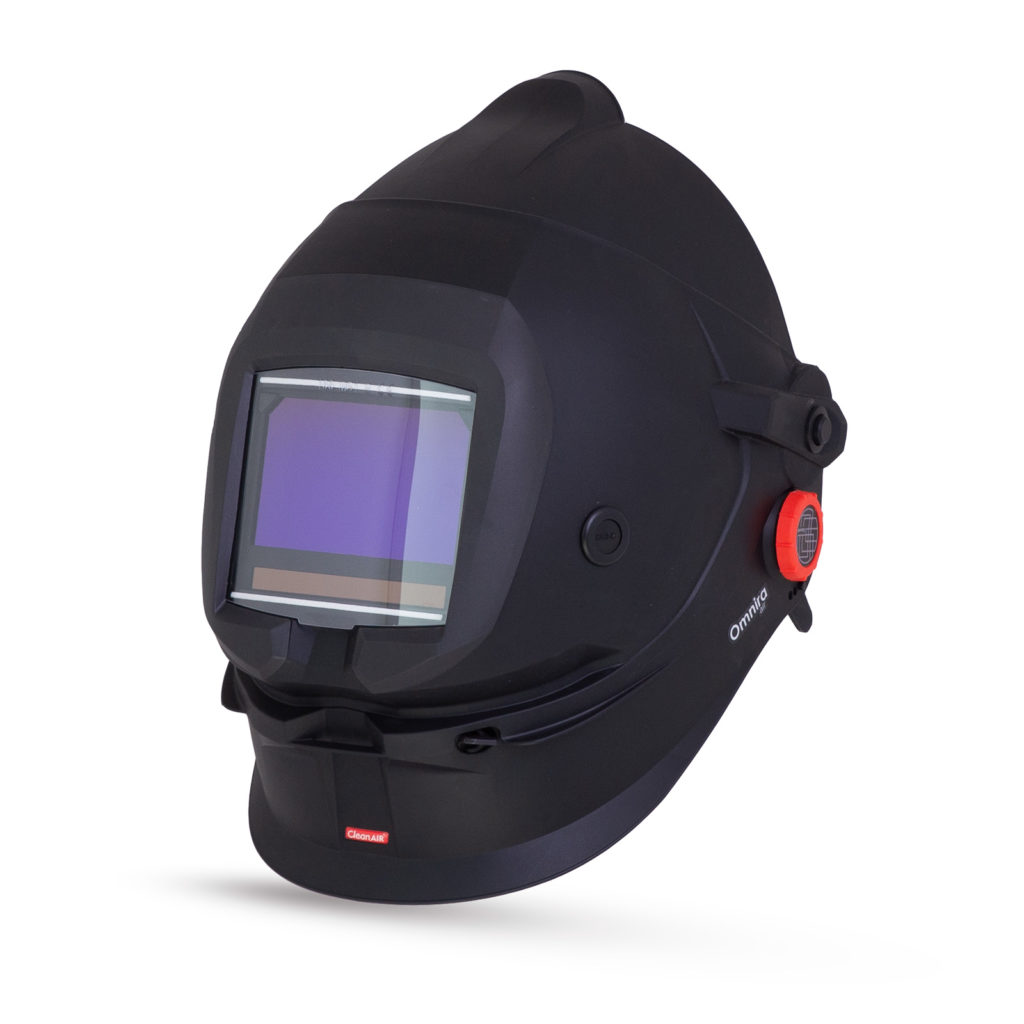

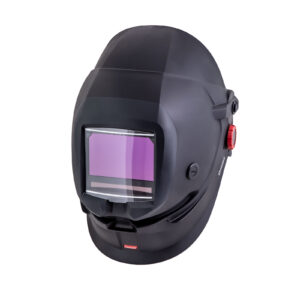

Autodarkening welding helmet with an advanced built-in
air distribution system and flip-up welding shield. Provides
protection of the user´s eye and face from harmful
radiation including visible light, ultra-violet(UV), infra-red (IR)
radiation, hot sparks and spatters resulting from arc welding
and cutting. At the same time it provides protection against
high speed particles.
It is adapted for use with powered
air purifying respirators CleanAIR® or with continuous flow
compressed air breathing apparatuses CleanAIR®.
Lightweight and durable
Lightweight and durable shell, meets the requirements of EN 175 B and thus ensuring protection against high speed particles.
Adjustable air flow
For more individual comfort you can regulate the airflow in two zones
ZONE 1 – control knob accessible from outside the helmet controls the direction of the air
coming from the lower part of the airduct.
ZONE 2 – the two other outputs are located in the upper part of the helmet. The intensity of the
airstream can be regulated by the two sliders inside the helmet.

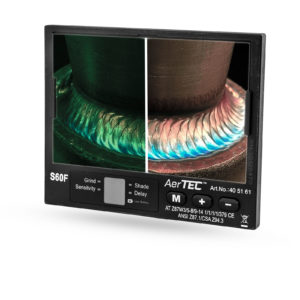

ADF S60F
- TRUE COLOUR TECHNOLOGY True colour display for increased colour perception and excellent clarity of vision at all time.
- SEE MORE Large viewing area 98 x 62 mm
- TEN DARK SHADES available for various welding jobs
- FOUR SENSORS for stable arc detection
Superb optics for a better view
ADF with the highest image quality standard in all four classification.
MAGNIFYING LENS can be easily attached to the ADF.
Meeting the highest requirements according to EN 379 for eye protection of welders.
| Optical Quality: | CLASS 1 |
| Light Scattering: | CLASS 1 |
| Homogeneity: | CLASS 1 |
| Angular dependence: | CLASS 1 |
VariGEAR
FITS ALL HEAD SHAPES Newly designed head suspension allows multiple individual settings.
COMFOTABLE HEADGEAR The crown part of the headgear is vertically adjustable to fit all head shapes and sizes.
QUICK REPLACEMENT Easy replacement of the headgear just by sliding it out of the holder.
PRECISE FIT The smooth ratchet mechanism allows precise adjustment of the head circumference and a secure fit.
CUSTOMIZABLE Easy adjustment of the distance between the face of the welder and ADF. Keep the helmet as close as possible to your eyes for a wider view and minimum neck strain.
HOSE HOLDER Easily removable hose holder can be placed either left or right.
Extend your protection

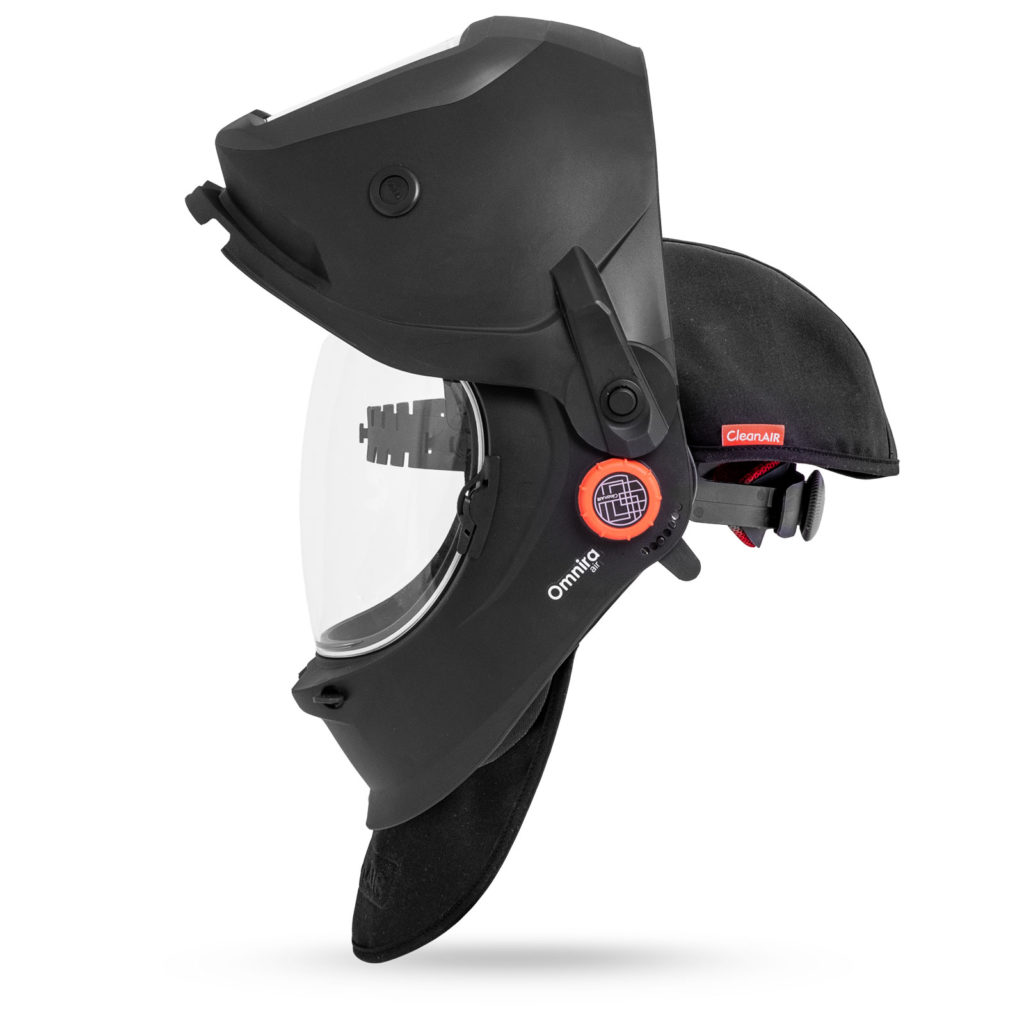

Omnira COMBI air comes in a basic package with a protective, flame retardant, head and neck cover that ensures perfect comfort and user protection.
NEW Omnira COMBI
The flagship of our welding helmets, without air distribution.

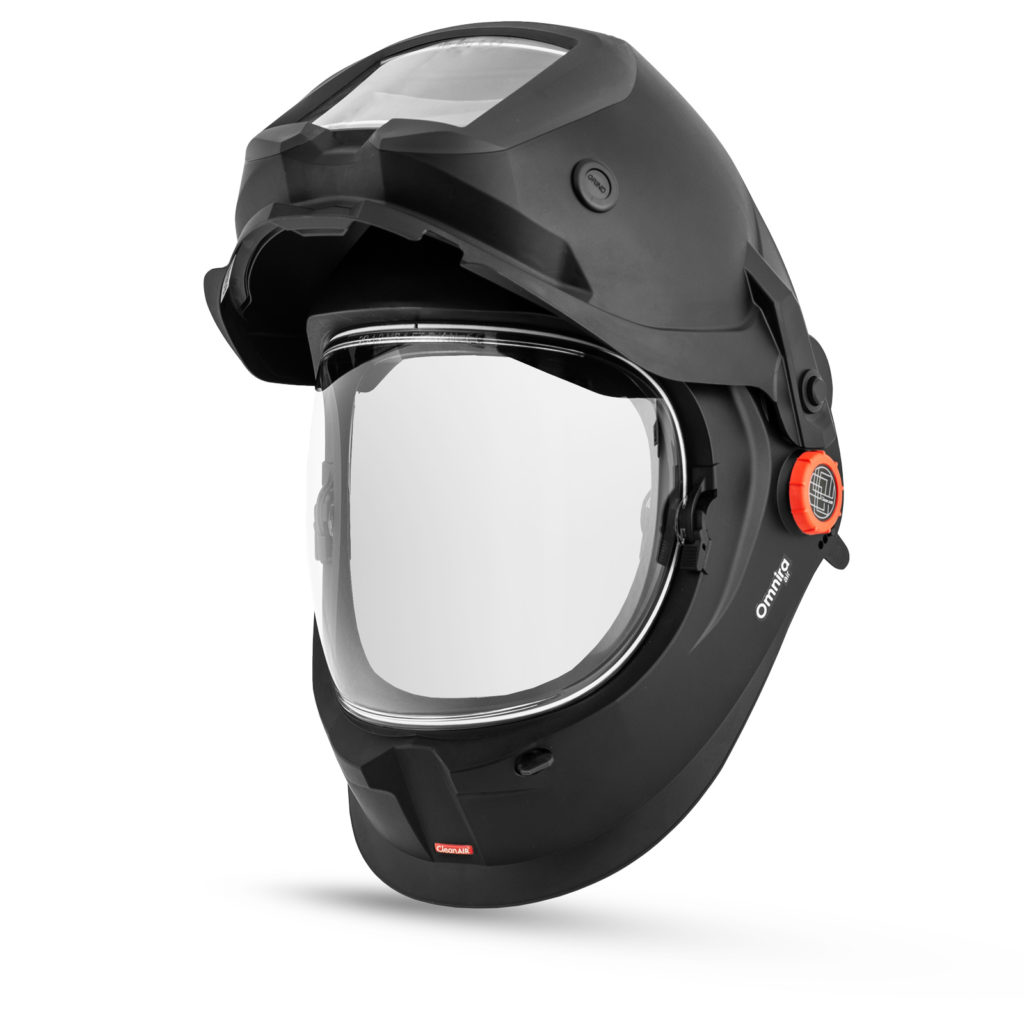

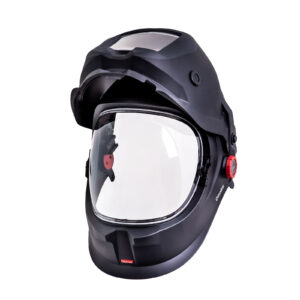

The Omnira COMBI welding helmet redefines welding experiences. It incorporates a flip-up front, enabling quick lifting of the welding shield to achieve an unobstructed and expansive field of vision without the need to raise the entire helmet. The helmet features a clear visor engineered to deliver exceptional optical quality, high mechanical resistance, and an anti-fog coating.
Details
Areas of application
Professional flip-up welding helmet suitable for most of welding processes such as MIG/MAG, SMAW, TIG, Plasma Arc welding and cutting, Carbon Arc gouging, gas welding and cutting. Thanks to the large clear visor it is very convenient for grinding.
Features & Benefits

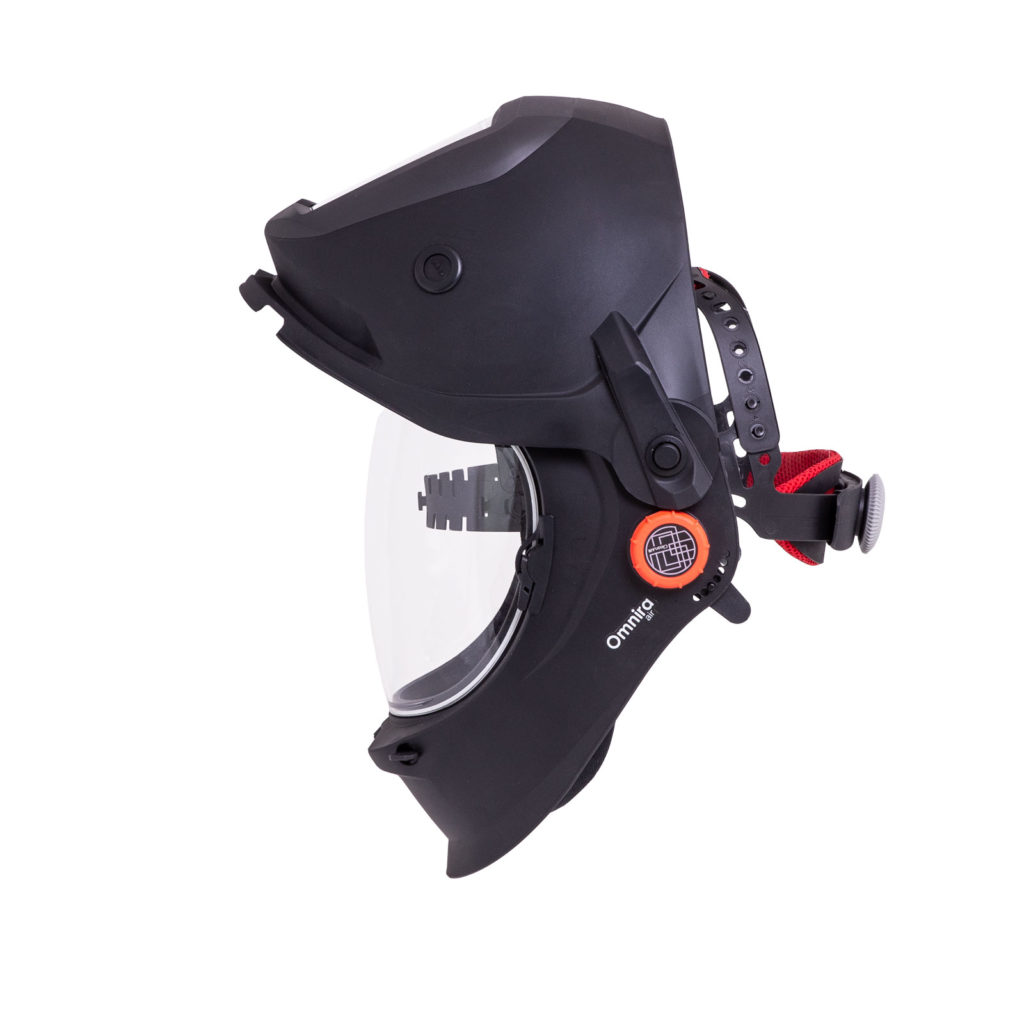

- The flip-up front can be lifted up whenever the wide undisturbed view is needed
- The flip-up system allows you to switch between welding and grinding without compromising respiratory protection
- The highest respiratory protection and more comfort thanks to an advanced built-in air distribution system
- True colour ADF with the highest optical quality 1/1/1/1
- Fast and easy replacement of all spare parts
| Complete hoods and sets | |
| Welding helmet CleanAIR Omnira COMBI air, incl ADF S60F 5-8/9-14 incl air distribution | 703201 |
| Helmet shell CleanAIR Omnira COMBI air, w/o headgear, w/o ADF, incl mounting set | 703297 |
| Ready 2 Weld – CleanAIR® AerGO® & Omnira COMBI air | 30 32 01 |
| Ready 2 Weld – CleanAIR® Basic & Omnira COMBI air | 81 32 01 |
| Spare parts, accessories | |
| Spare protective visor TR1, clear | 72 90 00 |
| Spare protective visor TR1, yellow | 72 90 01 |
| Spare protective visor TR1, clear, aPA, chemicaly resistant | 72 90 90 |
| Spare protective visor CR1, clear CP | 72 91 00 |
| Spare protective visor TR1, shade 3 | 72 90 03 |
| Spare protective visor TR1, shade 5 | 72 90 05 |
| Spare flip-up welding shield CleanAIR® Omnira COMBI, compatible with passive filter | 70 32 93 |
| Spare flip-up welding shield CleanAIR® Omnira COMBI, compatible with ADF S60F | 70 32 92 |
| Face seal CleanAIR® VERUS air, Omnira air | 70 30 60 |
| Protective head cover, flame retardant (Verus, Omnira) | 70 30 71 |
| Protective neck cover, flame retardant (Verus, Omnira) | 70 30 72 |
| Protective head & neck cover, flame retardant (Verus, Omnira) | 70 30 73 |
| VariGEAR Standard w/o padding, w/o sweatband | 72 00 09 |
| VariGEAR Comfort, headgear incl. sweatband | 72 00 10 |
| VariGEAR sweatband (pck of 2) | 72 00 15 |
| VariGEAR comfort set (set of sweatband and paddings) | 72 00 17 |
| Rear padding VariGEAR | 72 00 14 |
| Upper padding VariGEAR | 72 00 16 |
| Auto-darkening welding filter Aer-TEC S60F, 3/5-8/9-14, for FlipUp | 40 51 61 |
| Battery 3V for AerTEC S60 ADF | 13 51 60 |
| Protection plate outer (VERUS, Omnira COMBI, CA-40), pck of 10 | 70 40 80 |
| Protection plate inner (VERUS, Omnira COMBI, Summit), pck of 10 | *100/65 |
| Protection film for visor CR1 (Uni-Mask, Omnira), pack of 10 pcs | 72 03 20/10 |
| Technical data | |
| Weight | 1017 g |
| Material | Welding shield – PA ADF – PA, PC, Glass Protection plate – PC Headgear – PP, PA |
| ADF dimension | 110 x 90 x 7 mm |
| Shade level | DIN 5–14 Open state shade DIN 3 |
| Viewing area | 98 x 62 mm |
| Hose connection | QuickLOCK™ |
| Certification / NPF – respiratrory protection |
powered air purifying respirators – EN 12941, TH3 / NPF 500 airline sytems (supplied air) – EN 14594 (3B) / NPF 200 |
| Certification – eye and face protection |
protective visor TR1 – EN166 1 FT B K N frame – EN166 3 4 5 FT B 5/2-5 |
